JUSTU &Dongchuang Corrugated Cradboard

Qingdao JUSTU Precision Machinery Co., Ltd. cooperates with Dongchuang to launch a complete corrugated cardboard production line. With web widths of 1800/2200/2500/2800mm and speeds of 250/300/350m/min, it stably produces 3/5/7-layer corrugated boards for all packaging scenarios. The line has a clear division: Dongchuang for the wet end forming, JUSTU for the dry end finishing. Dongchuang wet end integrates shaftless roll stand, automatic splicer, positive pressure cassette single facer, etc., ensuring bonding strength and flatness via precise temperature control and uniform gluing. JUSTU dry end is equipped with servo thin blade slitter scorer, high-speed spiral cut off machine, fully automatic double layer down stacker, all servo-driven, with slitting accuracy ±0.5mm and length cutting accuracy ±1mm, enabling high-speed stable production and non-stop order change. The two-party linkage achieves high-speed production, high-precision delivery and low-loss operation, widely used in food, electronics, logistics and other industries, helping enterprises reduce costs and improve efficiency.

JUSTU&Dongchuang Corrugated Cardboard Production line solution

Qingdao JUSTU Precision Machinery Co., Ltd. cooperated with Dongchuang to launch a completed corrugated cardboard production line, covering multiple web widths of 1800/2200/2500/2800mm, adapting to high-speed production of 250/300/350m/min; It can stably produce 3-, 5-, and 7-layer corrugated boards, meeting all packaging scenarios. The production line is divided into Dongchuang in charge of the wet end and JUSTU responsible for the dry end, with division of labor to achieve efficient and high-precision delivery.

Dongchuang·Wet End

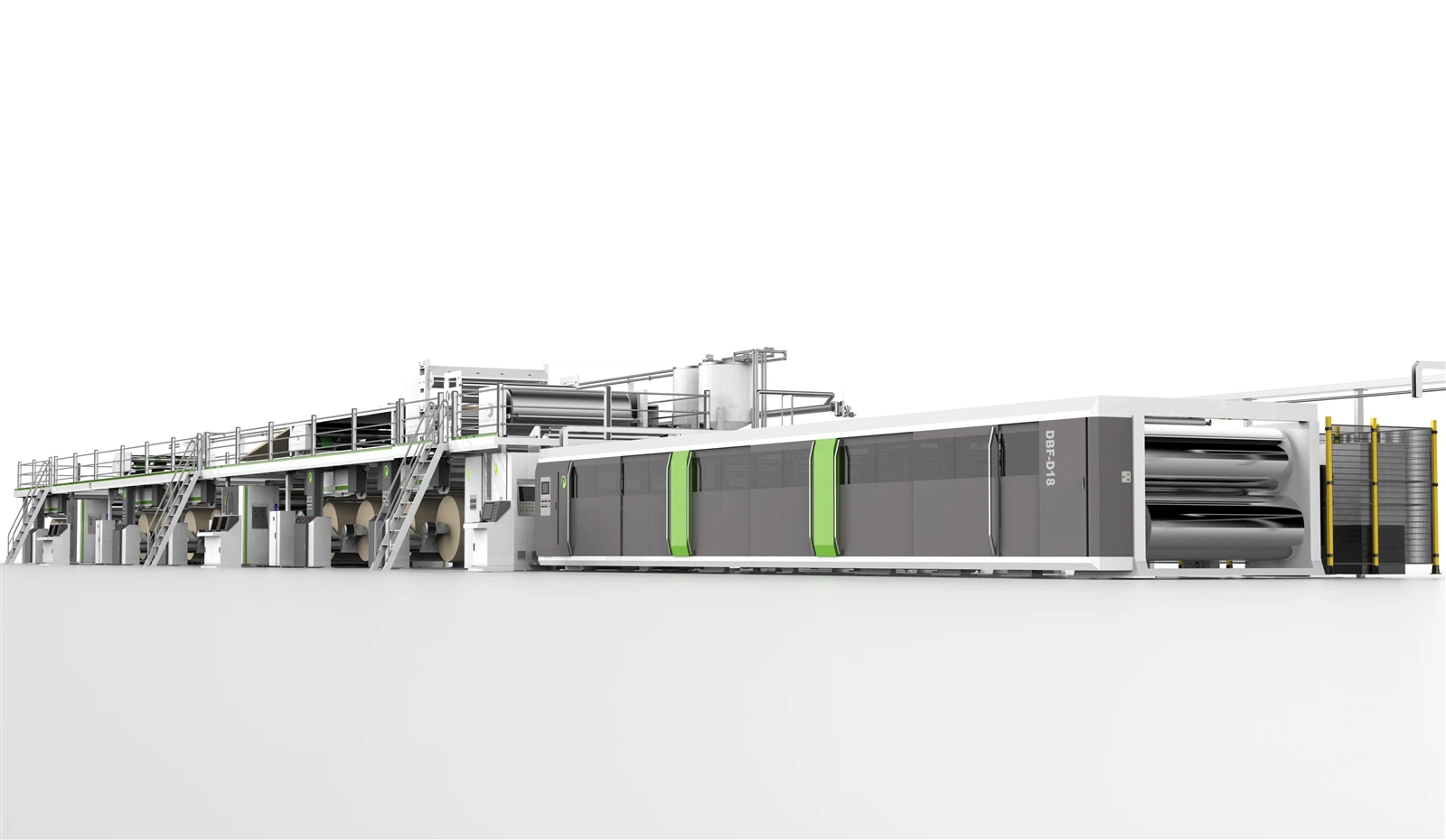

As the core of corrugated board forming, Dongchuang's wet end is equipped with units such as Hydraulic mill roll stand, auto splicer, cassette type single facer, gluing system,bridge conveyor,auto alignment tension system,triple pre-heater,double facer and steam system, realizing the whole process processing from base paper to semi-finished board. It can flexibly combine A/B/C/E and other flute types, ensuring the bonding strength and flatness of 3/5/7-layer boards through precise temperature control, uniform gluing, and seamless bonding, laying a high-quality foundation for subsequent processing in the dry end.

JUSTU·Dry End

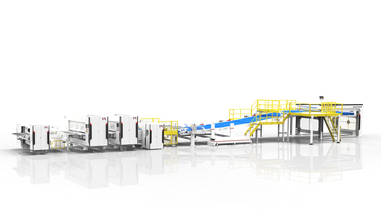

JUSTU 's dry end takes high precision, high efficiency, and high stability as the core, composed of servo thin blade slitter scorer , high-speed spiral blade cut off machine,automatic stacker and supporting conveying system. All units are servo-driven, adapting to high-speed line speeds and multi-spec orders.

THE SOLUTION OF DRY END

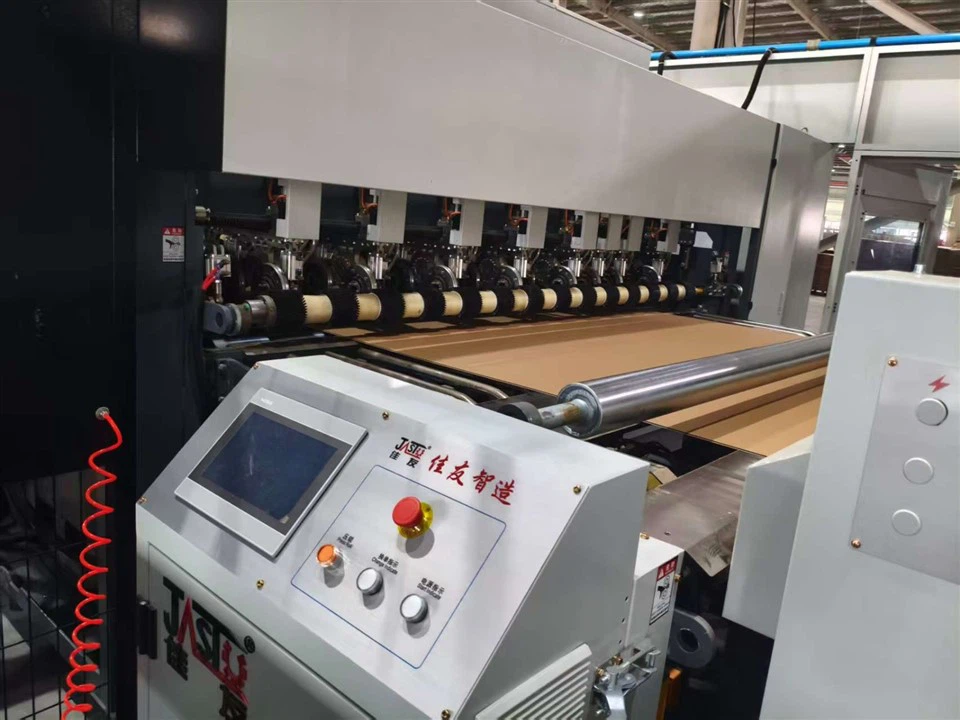

Thin blade slitter scorer machine

Adopt servo motors for higher positioning precision. Adopt the thin -type tungsten steel alloy blade.Select three types of scorers.

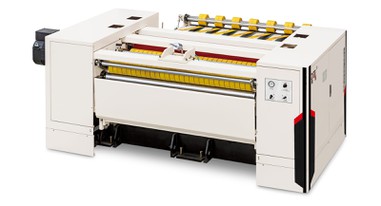

High-speed spiral cut off Machine(Single layer Double Layer)

With high or mid-speed corrugated board production line ,it could realize full computer control ,auto order changing ,and high speed slitting of different lengths of boards.By combing with advanced control mode and high quality machine designing ,

Stackers

Servo auto-counting up stacker,gantry type NC servo disloaction stacker,full automatic NC servo down stacker ,fully automatic double layer down stacker and NC servo double layer up & down stacker.

Conveyor system

Module belt type conveying platform,module belt typemotorized materials distributing machine
