Feature:
(1) Steam heating
(2) Easy operating.
(3) Equipment composition:
Mill roll stand
Single facer machine
Bridge
NC Slitting and Cut off Combined Machine
Computer stacker

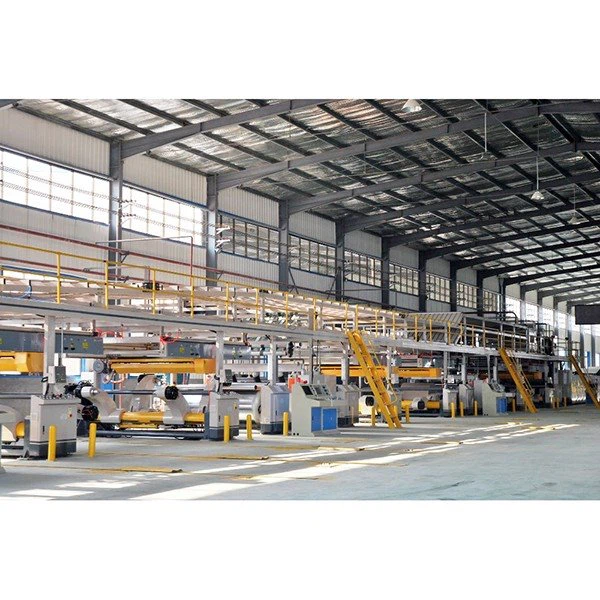

2200mm Corrugated Cardboard Line Parameter:
Effective width: | 1400mm-2500mm |
Design Speed: | 100m/min -150m/min |
Mechanical configuration: | NC Slitter and NC helical cutter and stacker |
Min. Cutting length: | 300mm |
Max. Cutting Length: | 9999mm |
Cutting accuracy: | ±1mm(uniform speed), |
Five groups Ø200 thin blade knife. | |
Memory of 200 orders, man-machine interface, the screen displays formation, easy for machine operator modify or cancel order at any time. | |
Adopt Germany KEB servo system and high-performance synchronous servo motor. | |
Helical knives structure with HSS knife edge, serration type knife and scissor cutting with less shear force, keep the knives long life. | |
Host base and machine frame adopt gray cast iron to keep machine strong and stable. | |
Adopt 3 section up stacker, the paper board automatic side delivery after reach setting quantity. | |
Max. Stacking length 1.3m. | |
Fast change order in 3 seconds. | |
Adopt tungsten steel alloy thin blade, blade life more than 8 million running meters. | |
Automatic or manual knives grinding is option, non-stop grinding knives improve production efficiency. | |
