Main Structure & Working Principle
Structure
1.Modular Belt Conveying Surface: Anti-slip modular belt with forward & reverse running; droop design prevents belt jumping, reverse drive avoids deviation.
2.Rotating Base: High-strength carbon steel frame, rotating range: 0–180°. Equipped with polyurethane walking wheels for low noise and stable operation.
3.Drive System: Bevel gear reducer + brake motor; variable frequency speed regulation.
4.Electrical & Safety System: PLC automatic control, front & rear safety scanning for collision prevention, early warning, emergency stop and running alarm devices.
Working Process

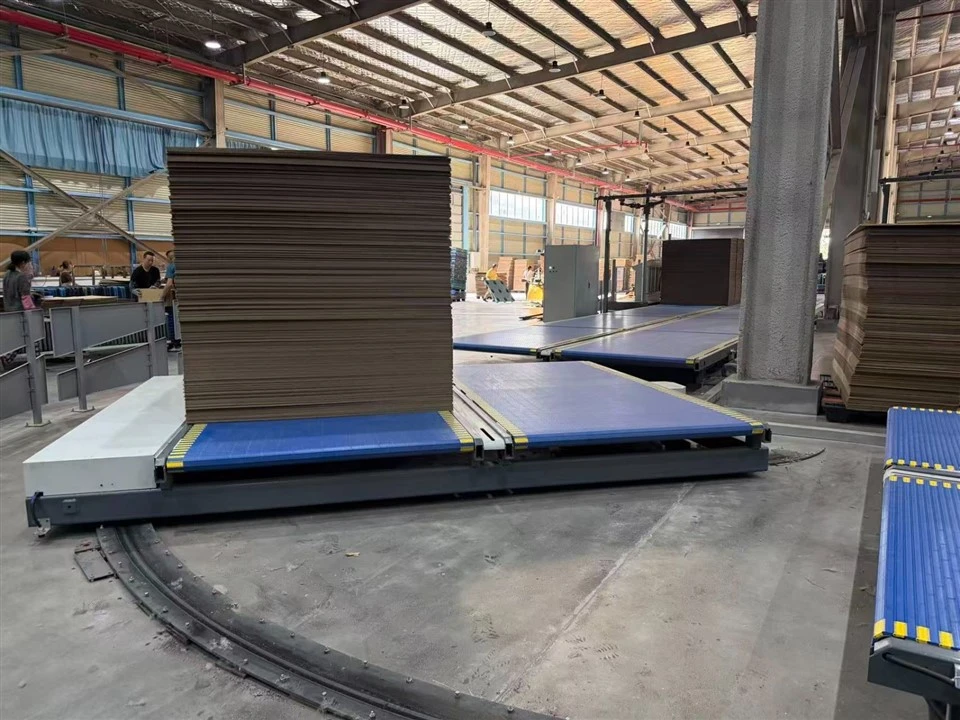

1.Board stacks are delivered onto the turntable from the front straight conveyor line.
2.The base rotates precisely by 90° while the modular belt keeps running, so the board stacks change direction steadily without pause.
3.After direction conversion, materials are smoothly transferred to the rear conveyor for subsequent processes.
Core Advantages
Advantages
1.Stable Operation: Anti-slip belt and adjustable speed ensure no stack tilting, deviation or board scratch.
2.Space-saving: Compact layout replaces traditional right-angle conveyor lines and shortens overall line length.
3.Intelligent Connection: Precise positioning controlled by PLC, compatible with ERP, MES and IMS for full-plant intelligent logistics.
4.Low Maintenance: Modular structure with wear-resistant PE strips, long service life and easy upkeep, low operating noise.
5.High Safety: Multiple anti-collision, emergency stop and alarm functions to protect operators and equipment.
Common Types & Selection Guide
Types
1.Modular Belt Turntable Conveyor: Mainstream type. Suitable for boards 1400–1800mm wide, medium & high speed and heavy board stacks.
2.Roller Type Turntable Conveyor: Light-duty model. For narrow and lightweight boards with lower cost.
3.Right-angle Transfer Trolley: Supports 0–180° rotation and free movement. Ideal for flexible material transfer between workshops and multiple processes.
Selection Factors: Board width & length, stack weight, conveying speed, site layout and intelligent configuration requirements.
Application Scenarios
Application Scenarios
1.Rear section of corrugated board production line: Connect stacker with printing, slotting and laminating machines.
2.Carton factory logistics: Direction change for material transfer between workshops, warehouse inbound & outbound.
3.Smart factory: Linked with AGV, automatic stackers and sorting lines to achieve unmanned conveying.
