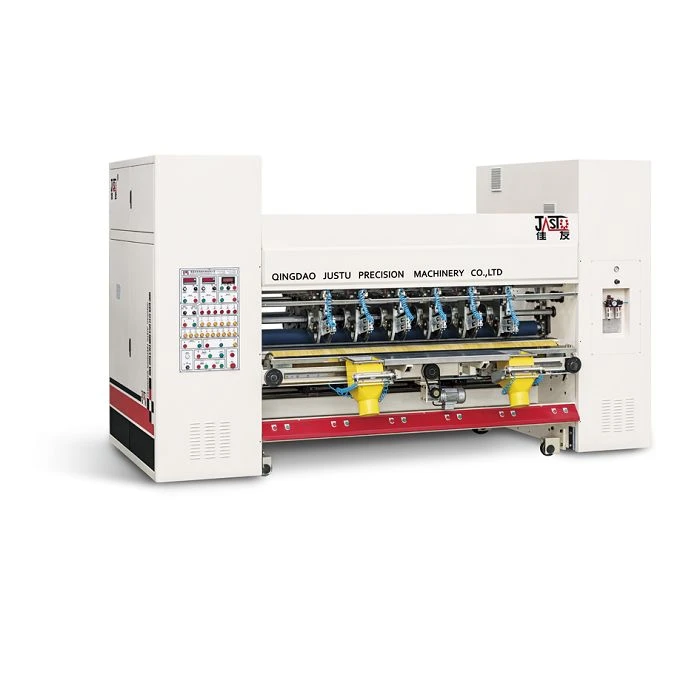

Thin Blade Slitter Scorer Corrugated board slitter and scorer
1. In the production process of corrugated boxes, this machine is a carton mechanical equipment that completes the pre-pressing, conveying, paper-separating and line-pressing processes at one time.
2. The equipment adopts servo motor and PLC touch screen control, which can complete cutting and crimping at one time.
3. Simple operation, portable setting, servo motor can quickly change orders within 5 seconds, which greatly improves work efficiency.
4. Combination of knife adjustment and line-pressing servo motors and slide rails, helical gear transmission, more precise adjustment and smoother walking.
5. The main transmission adopts spline transmission, which has uniform force and is not easy to wear.
PLC Control
Corrugated board slitter and scorer
Simple operation: select the carton type, enter the carton size information, and press a key to complete the knife adjustment.
Production efficiency: Quickly produce small orders, save time for tool adjustment, and improve work efficiency.
Easy to Operate
Fast order change: Only 1-5 seconds to change order, and the processing efficiency of scattered orders is very high
Only need to scan the QR code to export the order information
Order storage: The system can store1, 000 orders
Thin Blade Slitter Scorer
|
Blades & scorer |
Servo Motor 4b & 6s |
Servo Motor 5b & 8s |
|
Pressure adjustment |
Auto |
|
|
Speed |
300m/min |
|
|
Max. feeding width |
2500mm |
|
|
Max. slitting width |
2500mm |
2500mm |
|
Min. slitting width |
140mm |
140mm |
|
Min. scoring width |
40×140mm |
40×140mm |
|
Slitter Accuracy |
±0.5mm |
|
|
Main motor power |
4KW |
|
|
Dimension (LxWxH) |
3460x1500x1530mm |
|
|
Overall net weight |
Approx 3000kg |
|
