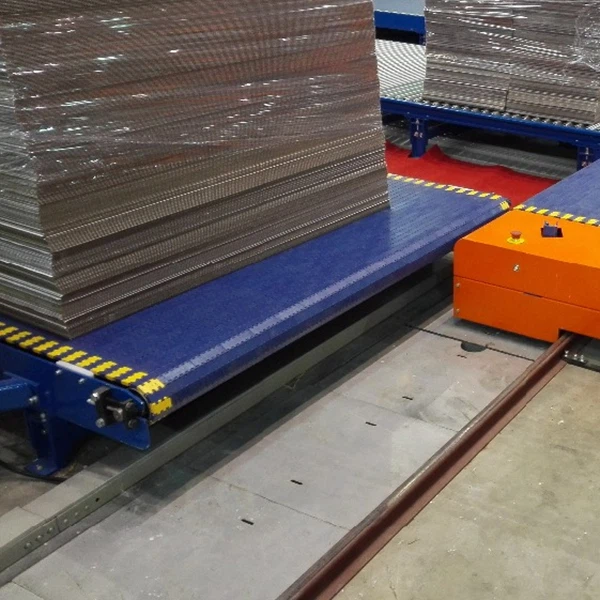

Duplex Auto Basket Stacker for High Speed Corrugated Cardboard Production Line Corrugated module belt corner machine
- MAX Paper Collecting Length: 3.5m
- MAX Stacking Height: 1.8 m
- Multi-order stacking function
* The Corrugated module belt corner machine can be converted into oil hydraulic driving through device addition: the driving of the lifting platform and feed-out rollers can be changed into oil hydraulic type
Corrugated module belt corner machine Specification
Paper Width(mm) | External Dimensions (mm) L*W*H | Weight(T) | Total Power of Motor(kW) |
1400 | 18500*3800*3500 | 9 | 30 |
1600 | 18500*4000*3500 | 10 | 30 |
1800 | 18500*4200*3500 | 11 | 35 |
2000 | 18500*4400*3500 | 12 | 35 |
2200 | 18500*4600*3500 | 13 | 39 |
2300 | 18500*4700*3500 | 14 | 39 |
The Corrugated module belt corner machine conveyance device is divided into four sections to carry out accurate separation of cardboards by order/lot and make the cardboard stack more neatly.
Specification
1. The feed-out rollers are driven by a frequency converter controlled frequency conversion motor, so the acceleration and
deceleration are stable, the cardboard output is smooth, and it is not easy to make the cardboard turnover.
2. The lifting platform is driven by a frequency converter controlled brake motor and gravity counterweights are installed, so the acceleration and deceleration are stable and forceful and the speed changeover is reasonable and effective; thus, the cardboard stacking is smoother, the folded marks on cardboard are avoided and the life of the machine is extended.
3. The feed-out rollers are arranged closely and are lifted together with the lifting platform to reduce waste paper sheets.
4. The sun gear for paper output is pneumatically controlled and the air circuit is specially designed, so the paper output is
stable and tidy.
5. The ascending arc of the conveyance platform is reasonable, so partial lifting, etc. of the cardboard will not occur during conveyance.
