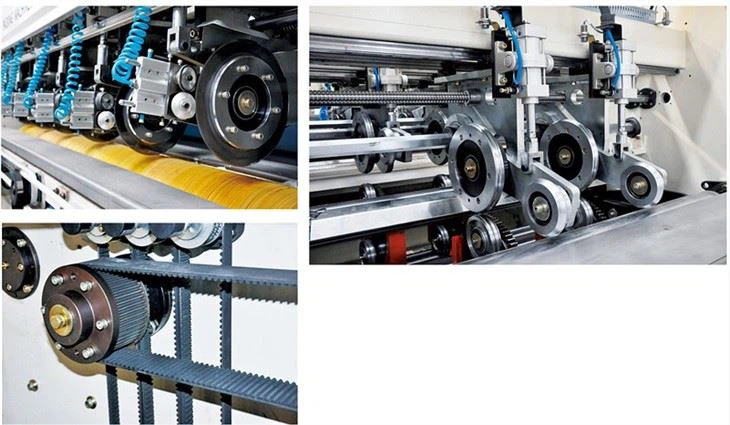

NC Servo Thin Blade Slitter Scorer (Zero Scorer, Pre-Scorer)

Electric and Pneumatic Parts

• French Schneider
• Li Jiu VF Motor
• Pneumatic components from SMC, Air Tac etc.

Actuation Part

• Supporting parts are manufactured with high quality steels.
• ZG230-450 cast blade and scorer moving plate
• Precisely-drawn high-quality steel transmission shaft
• High quality tungsten alloy blade

Transmission Part

• Imported synchronous belt
• HIWIN, BEST ball screw shaft, linear guide rail
• NSK, IKO, HRB precision bearings

Control Part

• Order Arrangement Drive: Servo control
• Blade/Scorer Drive: Toshiba or Schneider frequency converter
• Operational Monitoring: Schneider touch screen or industrial computer, and OMRON vision sensor
• Monitor Control: Schneider PLC, Sick series sensor
• Low-voltage Apparatus: Schneider

FUNCTIONAL FEATURES

1. The control system of master and slave computer is formed by imported high quality industrial computer and high performance PLC.

2. Due to high quality linear guides and high-precision ball screw transmission assembly, the slitter and scorer could have the positioning accuracy within +/-0.5mm.

3. Multiple groups of orders can be stored to ensure the order could be changed automatically without stop or by hand.

4. Automatically track the speed of production line to be synchronous with it and could be able to connect with production management system due to strong compatibility.

5. Order can be quickly changed with changing time being 3-6 seconds (servo type: 3 seconds); while two machines are used at the same time, order could be changed quickly with less waste boards.

6. Adopt thin-type tungsten steel alloy blade which is very sharp and could serve more than 8 million meters.

7. Adopt patented passive grinder which is simple in structure and easy in maintenance.

8. Grinding can be finished automatically by computer or by hand, so that they can be ground while slitting at the same time, and the production efficiency is improved.

9. Select three types of scorers: convex to concave (three layer board), convex to concave (five layer board) and convex to flat, which can be switched electrically.

10. Depths of scorings are automatically controlled by computer to have good line shapes and ease of formation.

11. Due to the imported synchronous belt conveying device, the precision is higher, the service life is longer and the noise is lower.

TECHNICAL PARAMETERS
